Vanto

A non-lounge hot tub, the Vanto® model features the same stylish design and powerful spa jetting system found on the popular-selling hot tub Vacanza® Series.

STYLE SELECTOR | *Click the swatch icons below to view color combinations

Cabinets

Coastal Gray

Espresso

Teak

Shells

White Pearl

Tuscan Sun

Desert

Midnight Canyon

Shells

White Pearl

Tuscan Sun

Desert

Midnight Canyon

Shells

White Pearl

Tuscan Sun

Desert

Midnight Canyon

star rating

“Very well built spa, with a good warranty package.”

Don | California

star rating

“We have had our hot for just over a year jowls and I would say it is one of the best purchases we have made.”

Adams | Nampa, ID


Vanto Jet Systems

These jets allow you to redirect the jet stream by changing the position of the nozzle. You can also regulate the force of the massage.

AdaptaSsage® jets provide a rotating massage pattern that you can regulate.

Provides a precise massage to target specific muscles.


FiberCor®

All Caldera® Spas feature FiberCor® an innovation that revolutionizes spa insulation. Applied at 2lb. density, FiberCor® is 4-times denser than regular 1/2 lb. Urethane foam.

EcoTech® cabinet

The exclusive EcoTech® cabinet, with its rich colors and embossed grain, offers the aesthetic appeal of real wood while providing the durability and easy care.

The Foot Ridge®

The Foot Ridge® support provides a convenient anchor point to help you remain stationary while powerful jets work their magic.

360° View

Drag the toggle left or right to see a detailed, 360-degree view of the spa seating, jet placement, spa shell and cabinet.

Product Preview
Handle



Tech Specs


SEATING CAPACITY

7 Adults

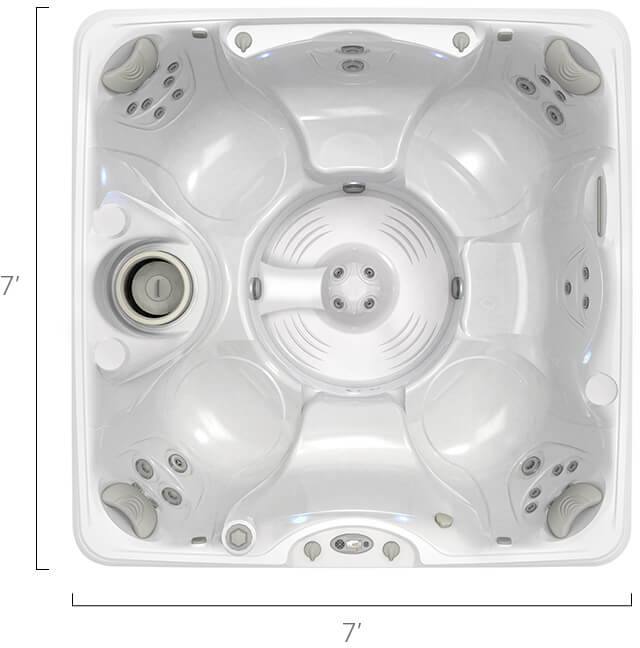

DIMENSIONS

7' x 7' x 36" / 213cm x
213cm x 91cm

WATER CAPACITY

375 gallons / 1425 liters

WEIGHT (DRY)

845 lbs. / 385 kg

WEIGHT (FILLED)

5,200 lbs.* / 2,370 kg

JET COUNT

35 Total Jets

HYDROMASSAGE JETS

27 Euro, 5 AdaptaFlo®,
3 AdaptaSsage®

ULTRAMASSEUSE SYSTEM

N/A

JET PUMPS

2 ReliaFlo® Pumps; 1 Dual-Speed
1.5 HP (3.2 BHP); 1 Single-Speed
1.5 HP (3.2 BHP)

CONTROL SYSTEM

LCD Main CP

CIRCULATION PUMP

None

HEATER OUTPUT

Hi-Flow Heater (4,000 Watts)

ELECTRICAL REQUIREMENTS

230V/50 amp

GFCI SUB-PANEL

Included

FILTER SIZE

65 sq. ft.

FROG WATER CARE SYSTEM

Spa Frog Cartridge Ready

MONARCH CD OZONE SYSTEM

Available option

WATER FEATURE

1 Acquarella Waterfall

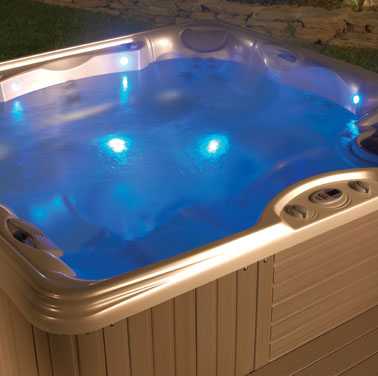

MULTI-COLOR LED LIGHTING

Mystique® 10 Points-of-Interior Lights

ENERGY EFFICIENCY

Fully-insulated with FiberCor® material, 2 lb. density; Certified to
the California Energy Commission (CEC) in accordance with California law

BRANDING

N/A

BOTTOM SEAL

Visquene Sheet

INSULATING COVER

3.5" to 2.5" tapered, 2 lb.-density
foam core

SPA SHELL OPTIONS

White Pearl, Desert, Midnight Canyon, Tuscan Sun

CABINET TYPE

EcoTech® Cabinet

CABINET & STEP COLORS

Espresso, Coastal Gray, Teak

COVER LIFTER

ProLift®, ProLift II, ProLift III, or ProLift IV

COVER COLORS

Chestnut, Ash, Caramel

COVER DESIGN

N/A

CALDERA ENTERTAINMENT OPTIONS

The Wireless Audio System with Extended Bluetooth® Technology,
The 22" HD Wireless Monitor

STEP TYPE

EcoTech® or Polymer

Vanto Reviews
